Multi-purpose 4 core Xlpe Insulated PVC sheathed Cable electricity power cable for construction industry

1.executive standard

GB/T 12706.1-2020

2.product use

The product is suitable for power supply, transmission and distribution lines with rated AC voltage U0/U 26/35kV and below.

3.model name

4.features

A) during normal operation of cable, the maximum conductor temperature shall be 70℃ for PVC insulation and 90℃ for XLPE insulation.

B) Maximum temperature of conductor during short circuit (maximum duration not exceeding 5 seconds) :

PVC insulation -- 160℃ for conductor cross section ≤300mm2, 140℃ for conductor cross section > 300mm2;  Crosslinked PVC insulation at 250℃.

C) When laying cables, the ambient temperature shall not be less than 0℃, and the minimum allowable bending radius is as follows:

Single core cable: unarmored 20D, armored 15D

Multi-core cable: 15D for unarmored, 12D for armored

Where: D- actual outer diameter of cable.

D) Cable breaking force:

Aluminum core cable: 40×S (N)

Copper core cable: 70×S (N)

Note: S is the total cross-sectional area of the conductor

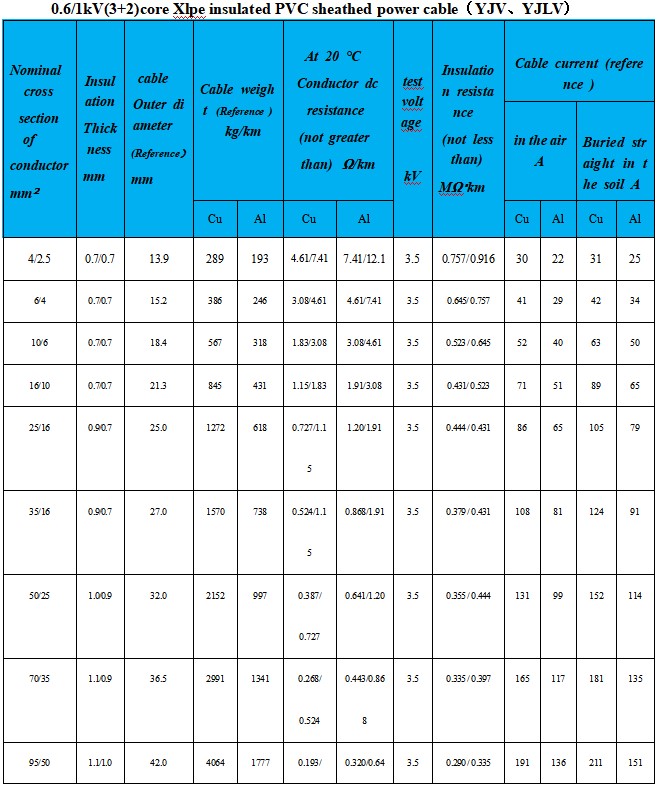

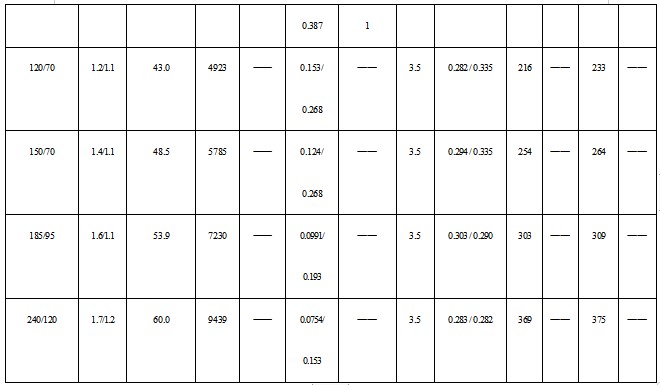

5.Product structure size and reference data
